Description

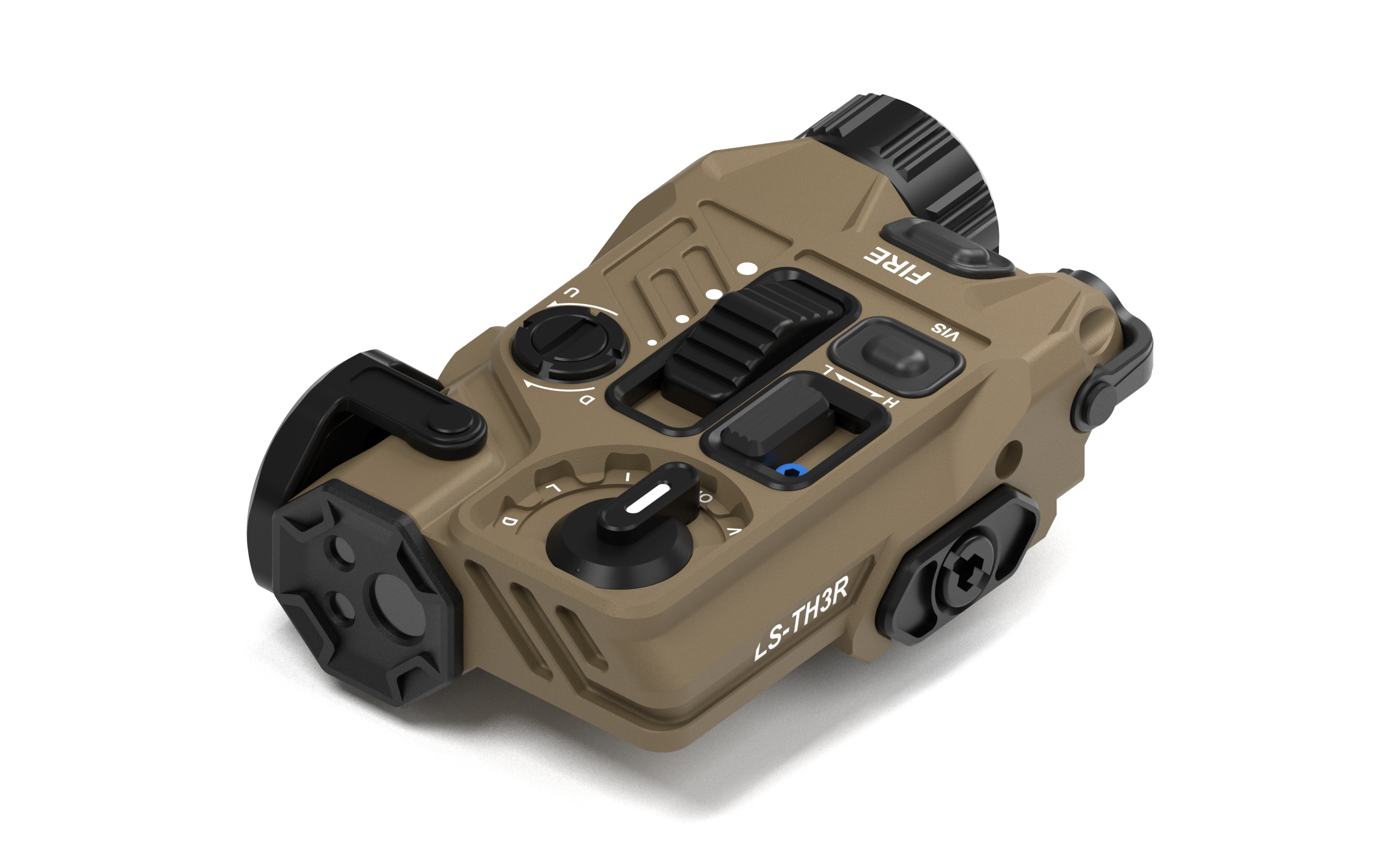

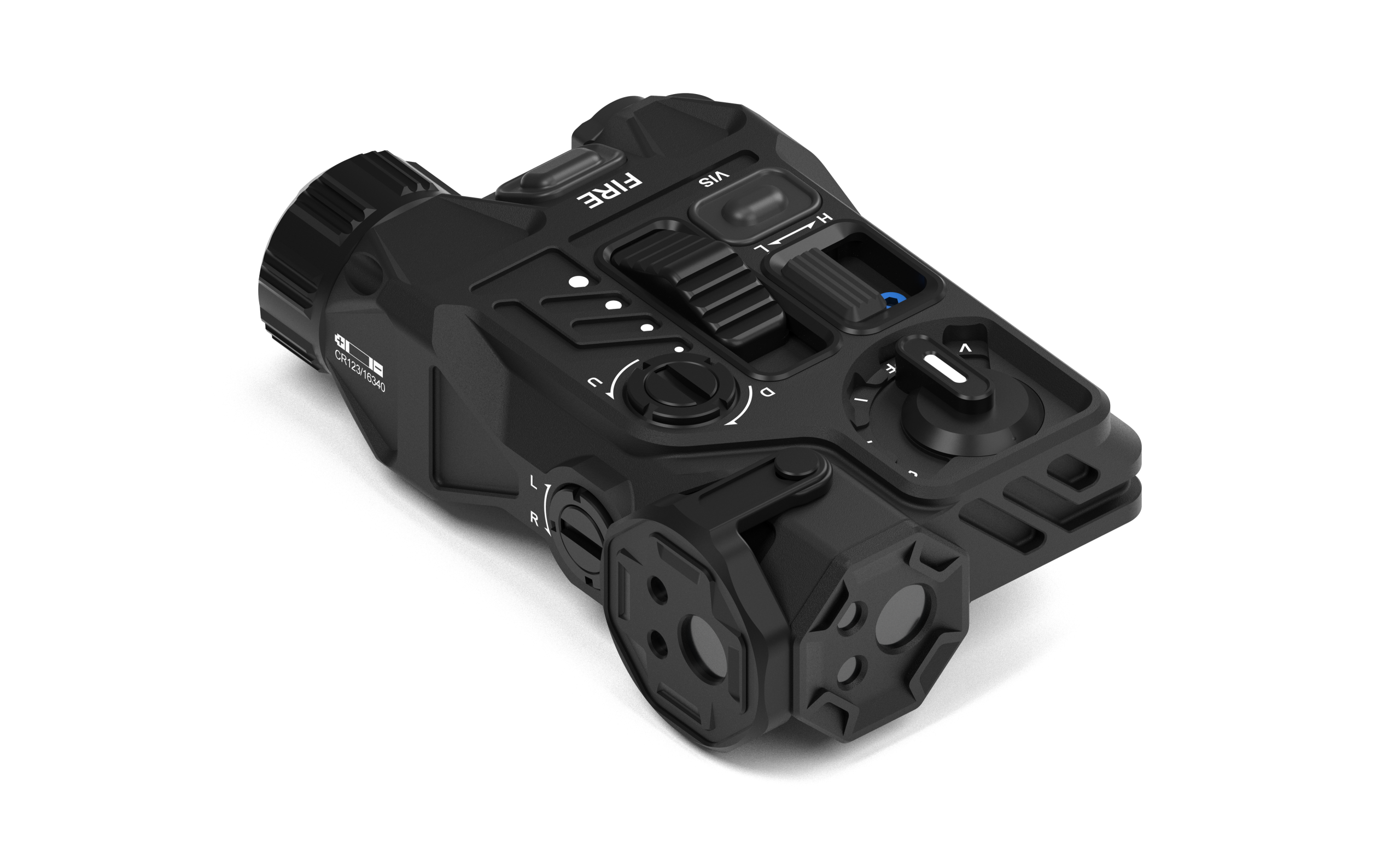

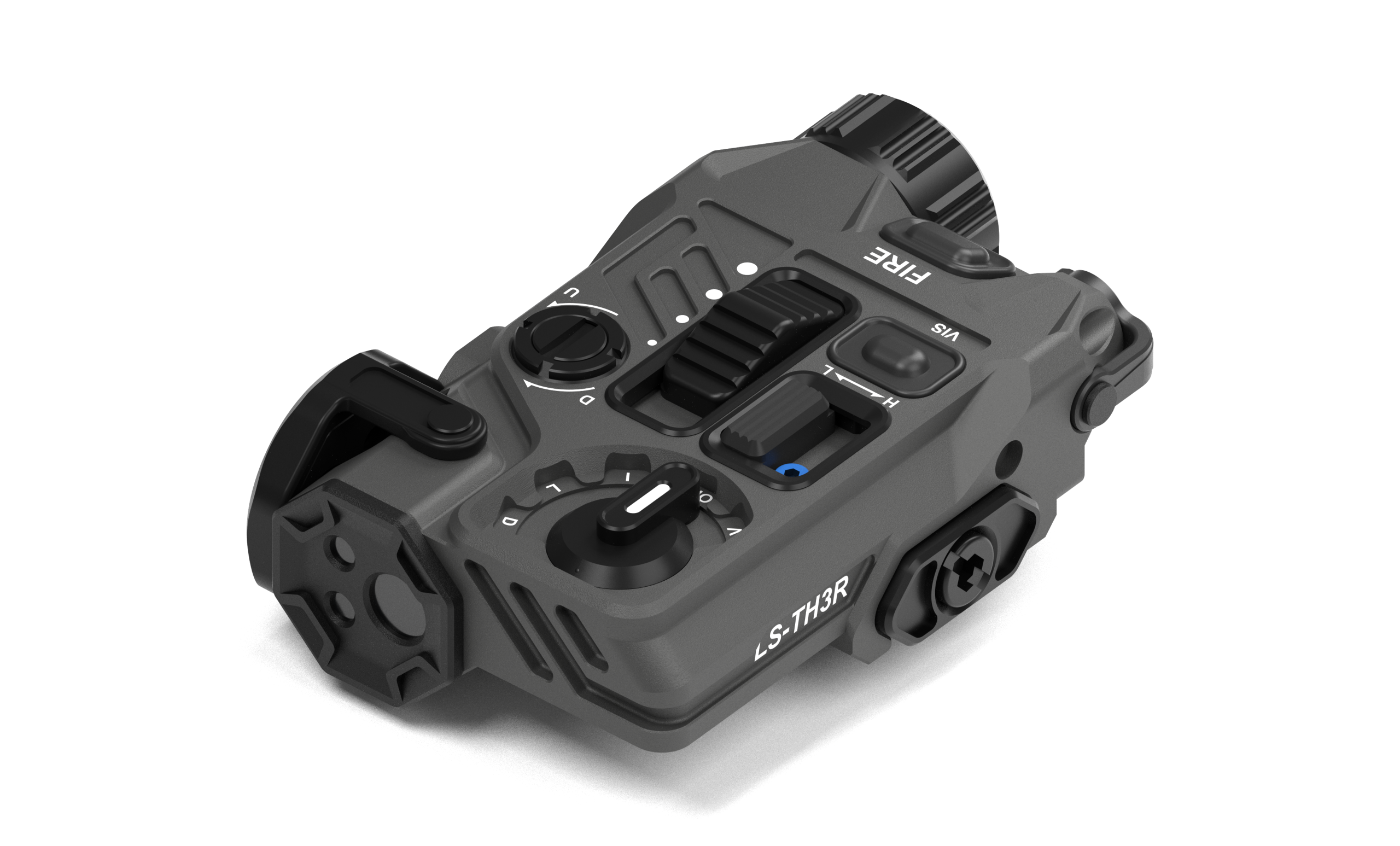

LASERSPEED LS-TH3R is a lightweight 3-in-1 laser aiming system designed for modern night vision shooters, integrating a visible green aiming laser, an IR aiming laser, and an adjustable 850 nm VCSEL IR illuminator into one compact, low-profile platform. At just 173 g and only 0.67″ above the rail when mounted, TH3R delivers full aiming and illumination capability in a streamlined package, making it well-suited for professional night vision setups.
Built with CQB in mind, TH3R features LASERSPEED’s Quick Aim Diffuser (QAD), designed to deliver a smoother, more uniform IR aiming beam for improved close-range performance and greater flexibility in night vision applications.
Key Features
- Ultra-low, ultra-light 3-in-1 capability at approximately 173 g with a low above-rail profile.
- 4-stage adaptive VCSEL illumination with 2°, 7°, 12°, and 17° beam sizes.
- Tri-beam co-aligned zeroing: one W/E adjustment keeps the visible laser, IR aiming laser, and IR illuminator aligned.
- Quick Aim Diffusion System for precision dot to rapid-acquisition circle use and improved IR beam uniformity.
- Intuitive control system with tactile glove-friendly controls, one-hand beam adjustment, instant VIS override, and momentary/constant-on operation.

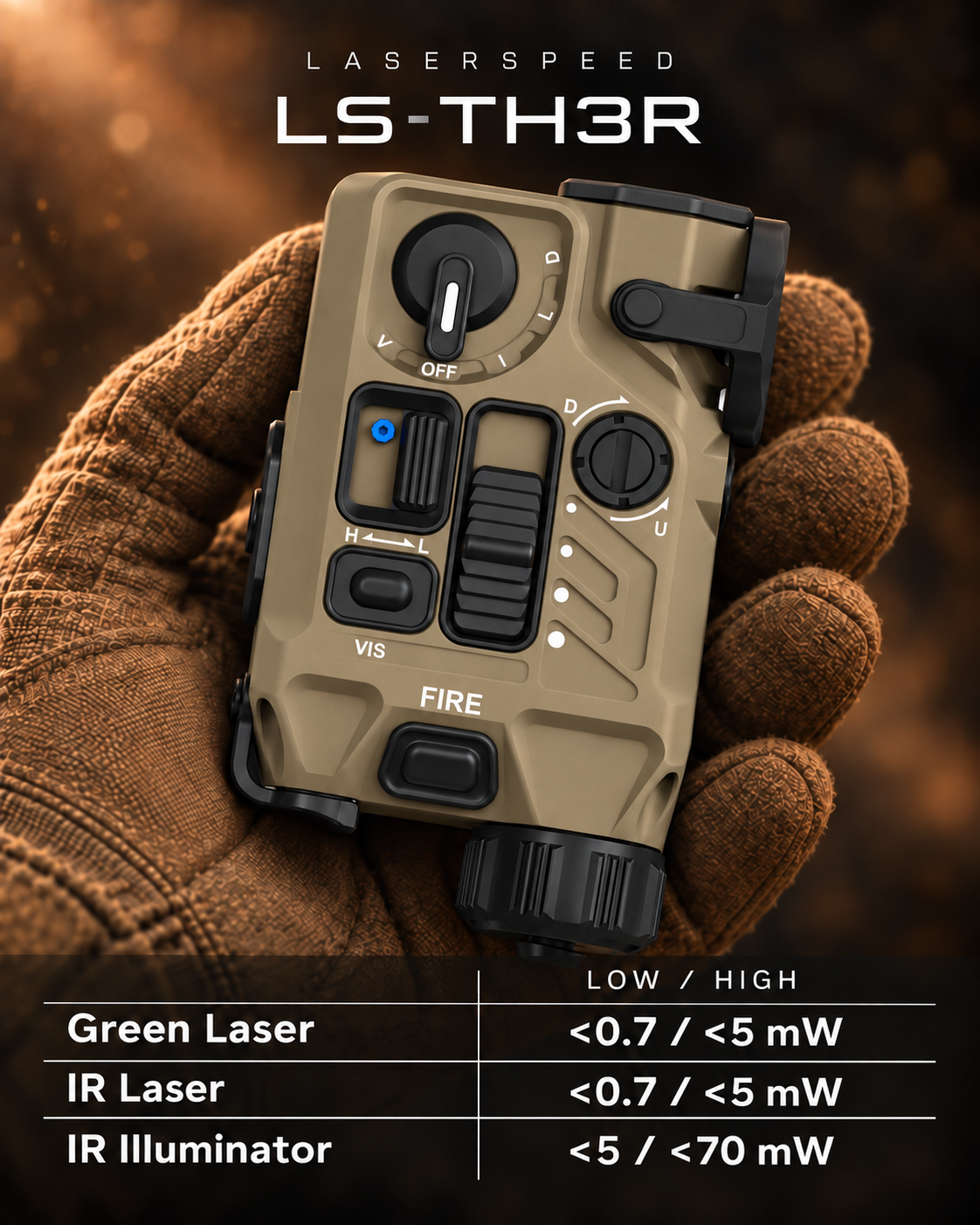

Output Specifications
- Green Laser: 515±5nm, <0.7 / <5 mW
- IR Laser: 830±15nm, <0.7 / <5 mW
- IR Illuminator: 830±15nm, <5 / <70 mW
- IR Illuminator Beam Divergence: 2° / 7° / 12° / 17°
- Aim Laser Beam Divergence: <0.8 mrad
- W/E Click Value: 0.3 mrad / 1 MOA
- W/E Adjustment Range: ±2°
- Battery Type: 1 x CR123A 3 V or 1 x 16340 3.7 V
Mechanical Specifications
- Dimensions: 98 x 57 x 33 mm / 3.86 x 2.24 x 1.30 in (L x W x H)
- Net Weight: 173 g / 6.10 oz
- Housing Material: Aluminum Alloy 6061 + 304 Stainless Steel
- Mounting Torque: 30–35 in-lbs
- Height Above Rail: 19.5 mm / 0.77 in above rail, measured to top of button
- Operating Temperature: -40°C to +55°C
- Shock Resistance: 1000 G 15 HZ
- Waterproof: IP68, 2 m depth for 1 hour
Launch sale: $509 Black variant only. Standard WHA price: $699.99.
Shipping: $19.00.
Please check your state and local laws before ordering. Orders may be subject to WHA review prior to fulfillment.
Manufacturer Warranty
LaserSpeed products include a 24-month manufacturer warranty against defects in materials and workmanship under normal use. Warranty service is handled by LaserSpeed and may require proof of purchase or product serial number.
Damage from misuse, improper installation, accidents, normal wear, unauthorized modifications, or purchase through non-authorized channels is not covered. Warranty coverage is provided by the manufacturer and is not a separate War Hammer Armaments warranty.
